About SOLARGRAF®
The photovoltaic panel integrated into the roof
A photovoltaic roof should not only be designed as an element for energy production, but as a complete solution capable of ensuring: perfect waterproofing, protection against weather agents and harmonious architectural integration.

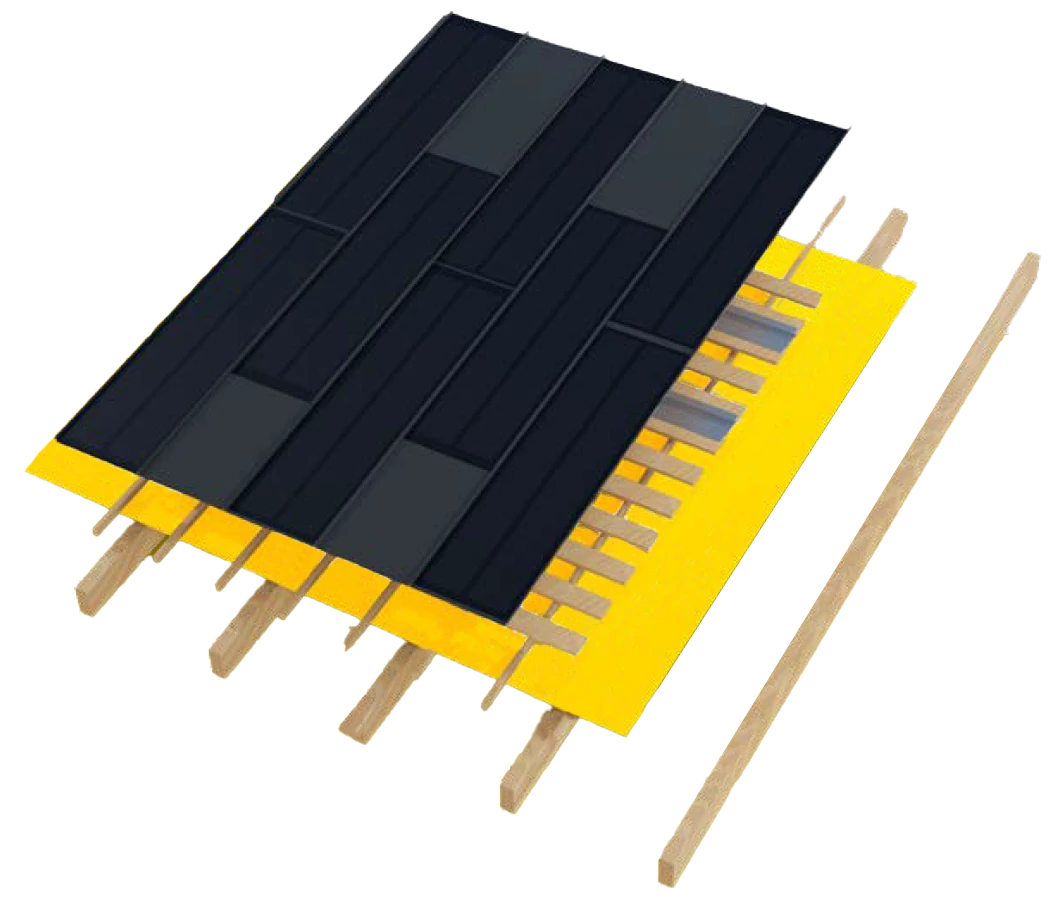

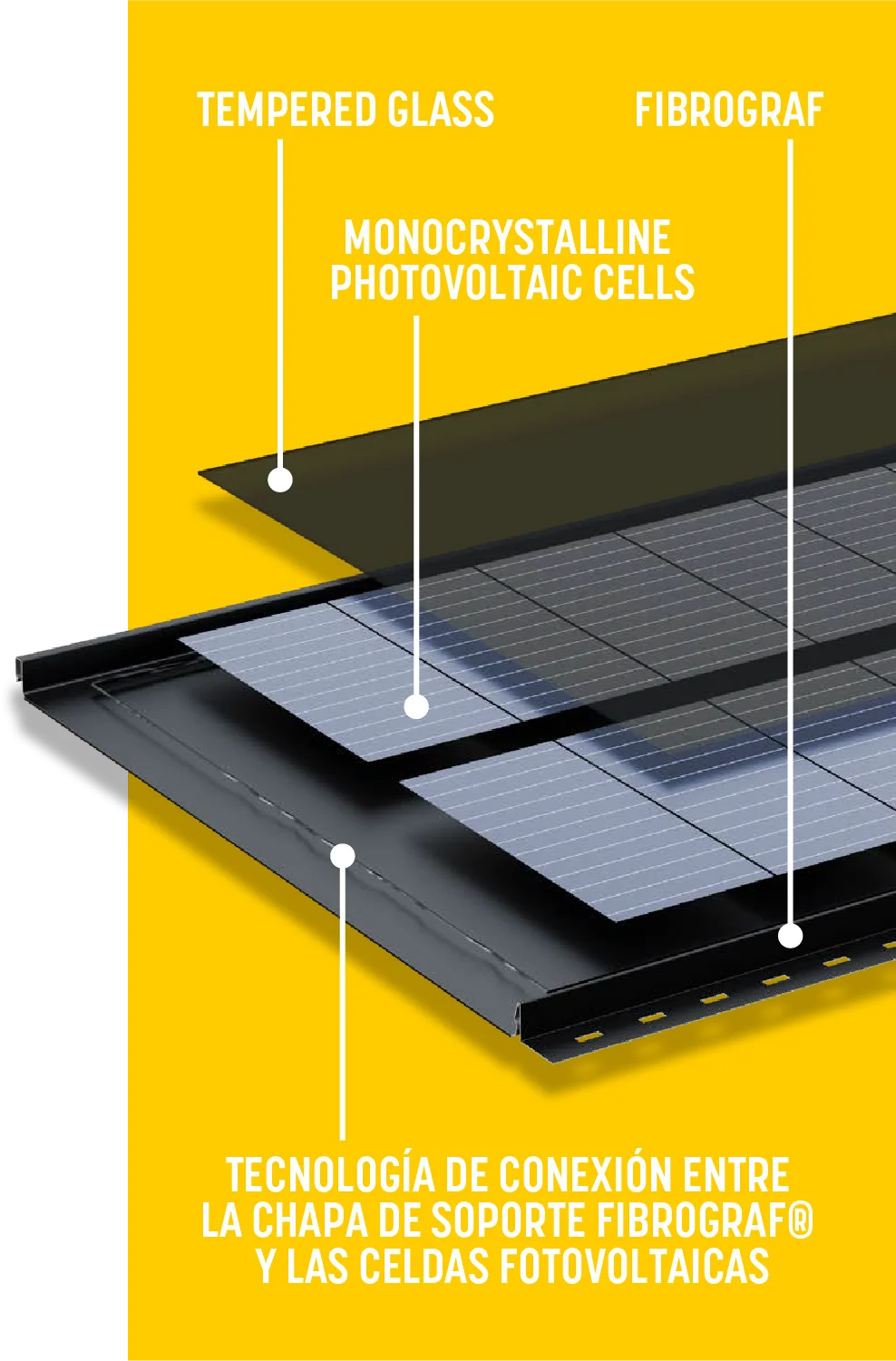

With SOLARGRAF®, you have access to a highly efficient BIPV (Building Integrated Photovoltaics) system, resulting from the combination of the FIBROGRAF® roofing sheet and the SOLARGRAF® solar modules.
The system also includes: flashings and finishes, all the components necessary for the photovoltaic installation: optimizers, inverters, cabling,
all rigorously selected to ensure quality and long-term reliability.
The result is an elegant and efficient roof, capable of protecting the building while producing clean energy, in a unique and integrated solution.
Thanks to the use of low-carbon steel XCarb®, SOLARGRAF® actively contributes to reducing environmental impact while enhancing the overall durability of the building.
About Solargraf
Il pannello fotovoltaico integrato alla copertura
Un tetto fotovoltaico deve essere progettato in modo tale che non sia solo responsabile della produzione di energia, ma che garantisca anche l’ermeticità, protegga la casa dalle intemperie e fornisca una soluzione completa. Con SOLARGRAF si ottiene un sistema BIPV (Building Integrated Photovoltaics) grazie all’abbinamento tra lastra FIBROGRAF e pannelli solari SOLARGRAF). Inoltre, la copertura viene dotata di scossaline e di tutti i componenti per l’installazione del fotovoltaico (ottimizzatori, inverter, cablaggio) di alta qualità.
Il vostro tetto offre un aspetto armonioso e una funzione 2 in 1: proteggere la casa e produrre energia. Grazie all’acciaio a basso contenuto di carbonio XCarb®, SOLARGRAF contribuisce a ridurre l’impronta di carbonio, con un impatto positivo sull’ambiente e sull’edificio.
ADVANTAGES
Why choose SOLARGRAF®?
Eco-design
Uncompromising aesthetics in harmony with nature
The solution includes the integration of FIBROGRAF® panels, manufactured with ArcelorMittal’s XCarb® steel, which is made from at least 75% recycled sources and produced using 100% renewable energy. This material allows for a significant reduction in carbon footprint. The SOLARGRAF® system ensures a uniform and elegant appearance, thanks to the seamless integration of the panels into the roof and the absence of visible cabling. Designed to meet the growing demand for clean energy, it enhances the architectural profile of the building and represents an innovative and sustainable solution for residential roofing.
712,5 kg C=2 eq.
Carbon footprint reduced with low-carbon XCarb® steel
1879,5 kg C=2 eq.
Carbon footprint in the production of traditional roofing materials
Accessories

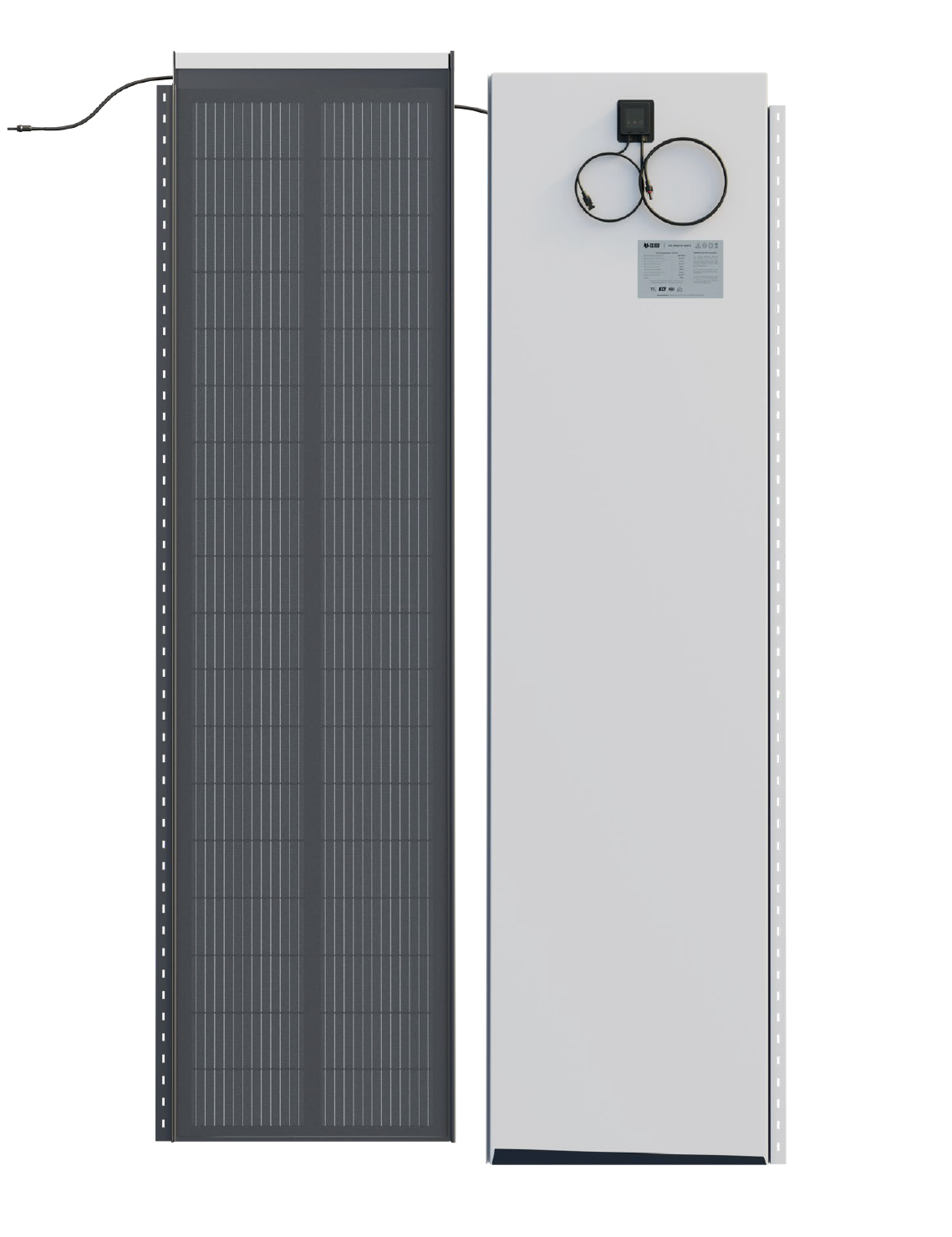

Technical details
Technical + Mechanical Details
Interlocking system
Rib height [mm]: 22 mm
Total width [mm]: 558 mm
Useful width [mm]: 527 mm
Material: 0,5 mm, XCarb ArcelorMittal
Panel length [mm]: 2040 mm
Fold length: 30 mm
Panel weight: 15 kg
Minimum roof slope: >9°
Connectors type: MC4 EVO2
Connector compatibility: MC4
Cable size: 4 mm, asimmetrico
Surface glass type: Temperato vetro
Photovoltaic Technical Info
Number of cells: 36
Max active power [W/m²]: 208
Max power voltage (Vmp): 20.82 V
Max power current (Imp): 8.38 A
Open-circuit voltage (Voc): 24.03 V
Short-circuit current (Isc): 9.80 A
Max system voltage: 1000 V
Cell type: PERC monocristallino 210 mm Mezzo taglio 2×18 celle
Junction box protection rating: IP68
Packaging Information
Panels per pallet: 17
Pallet dimensions (L x L x H): 220x66x80 cm
Safety Information
Static load: 2400 N (2.4 kPa)
Negative static load (wind suction): 2400 N (2.4 kPa)
Hail impact resistance: Max diameter 25 mm, speed 23 m/s
Temperature Coefficients:
Current: +0,07%/K
Voltage: -0,36%/K
Power: -0,38%/K
Operating temperature: from -40°C to +85°C
Compliance, Certifications and Fire Protection
Quality certificates
Standards compliance
Standards compliance The PV modules are engineered to comply with a wide range of international standards:
- IEC 61215-1:2016 – Photovoltaic module performance and functionality
- IEC 61730-1:2016 – Safety requirements for photovoltaic modules
- EN 13501-5:2016 BROOF (T1) – Fire protection classification
- ISO 9001:2015 – Quality management systems
Certificates
- XCarb® recycled steel and renewable production certification by ArcelorMittal
- Classification report of the FIT VOLT roofing product exposed to external fire
- Safety test report on BIPV and PV systems conducted by CBOiNT
- Production quality management certificate according to ISO 9001 standard
Durability
SOLARGRAF integrated roof panels offer high resistance to weather conditions. Steel provides an excellent strength-to-weight ratio, meaning even a thin sheet of steel can effectively withstand hail, rain, snow, and wind. Moreover, the use of low-carbon XCarb® steel helps reduce the environmental carbon footprint.
Fire protection
SOLARGRAF panels are registered as elements that do not contribute to the spread of fire. The BROOF-T1 test report compares the safety levels of BIPV SOLARGRAF systems with traditional photovoltaic systems and has demonstrated that during the propagation of fire on the surface of the SOLARGRAF system, the elements that make up the surface of the photovoltaic module do not catch fire nor are they subject to liquefaction.
