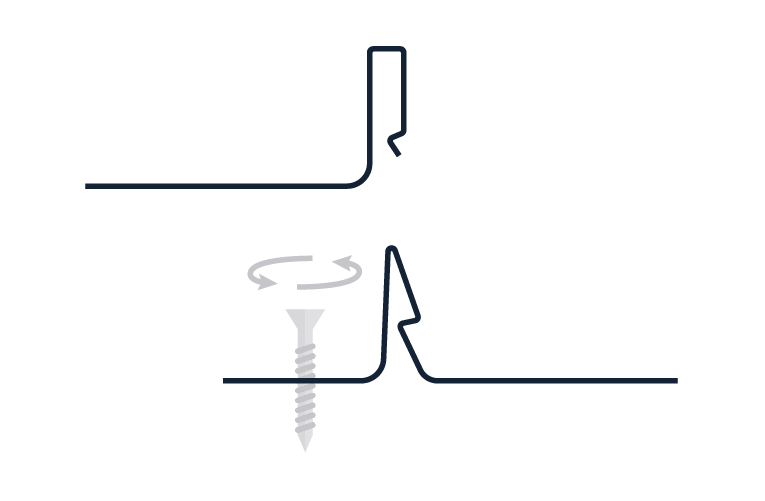

1. 1. Fix the first FIBROGRAF® panel to the support.
Fix the first FIBROGRAF® panel to the support.

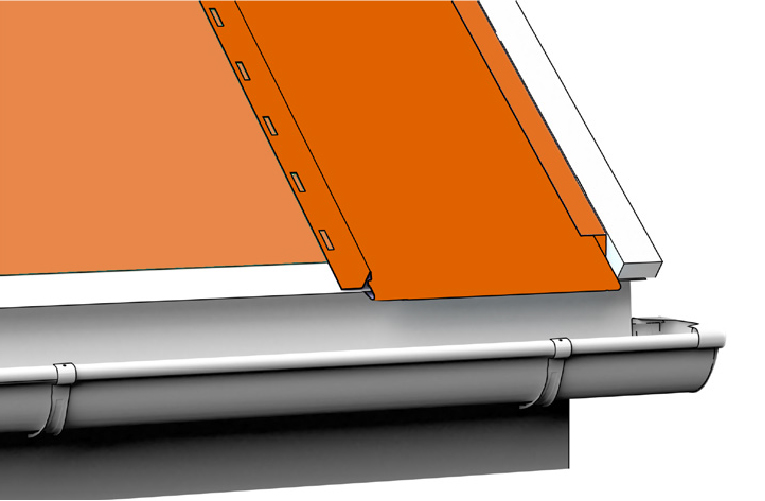

Slot the panel into the starter gutter using the pre-made anchor fold and a rubber mallet, leaving an expansion space of 10–15 mm.
Then fix the panel to the support through the factory-made holes.

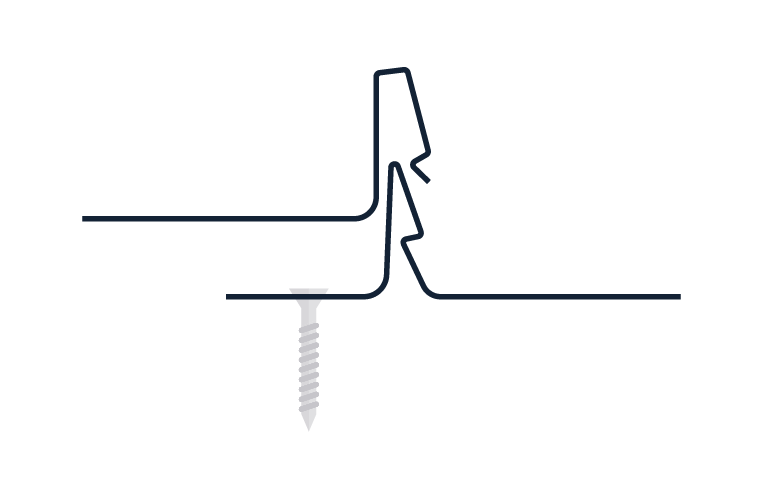

2. Overlap the next panel and… CLICK!
Overlap the next panel and… CLICK!
Lay the next panel over the fixed one. With wooden blocks and light rubber mallet taps, lock it into place to ensure tight sealing and optimal stability.

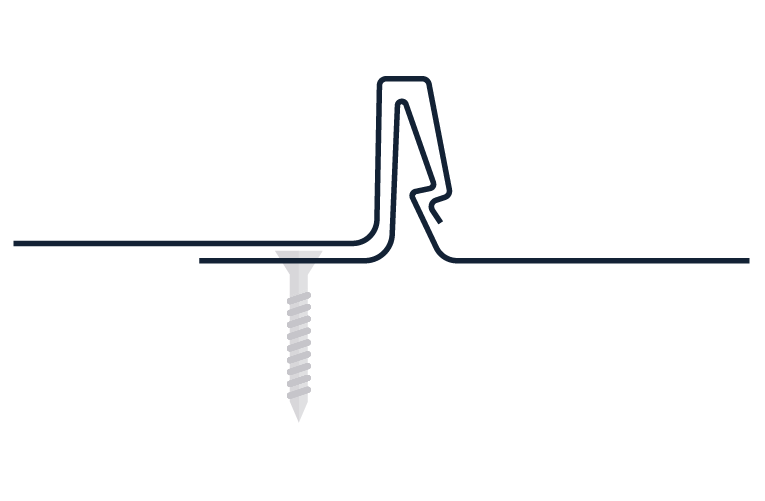

3. Squaring and sealing
Squaring and sealing
Adjust panels using the appropriate tools to ensure correct alignment and waterproofing.
